Controller "SKYLIGHT 2" |
|
This controller is intended for
light devices control in order to
create various lighting
programs and effects at concert
shows and discos. Sliding regulators available permit fast dimmer channels brightness changing. Controller can be used to control any DMX-512 1990 standard devices. |
SPECIFICATIONS |
| Power, V | 220 (+10% -15%) |
| Frequency, Hz | 50/60 |
| Power consumption, W | 15 |
| Number of channels for dynamic and static light control | up to 256 |
| Number of scanners participating in scenes construction | up to 30 |
| Number of scenes in one program | up to 250 |
| Number of programs in one show | up to 100 |
| Number of shows | 20 |
| Output signal | protocol DMX-512 1990 |
| Dimensions, mm | 482x266x80 (19", 4U) |
| Weight, kg | 4,1 |

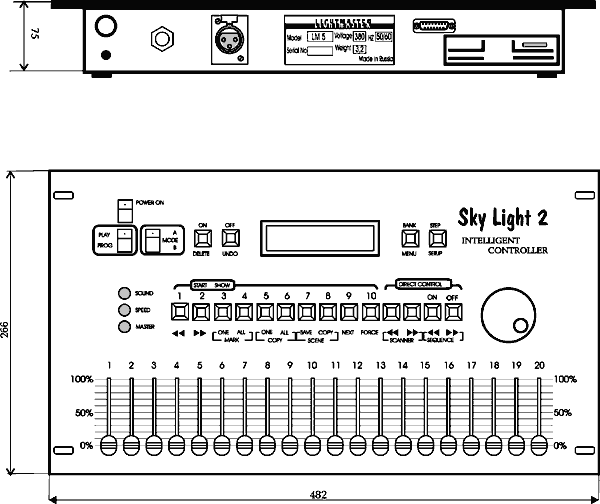

OVERALL DIMENSIONS |
|
 |
