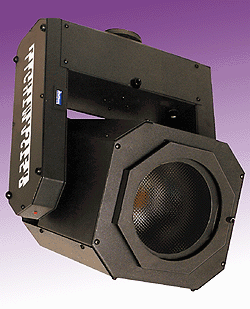

ROBOCOLOR LM-1100
Patents ¹2107220, ¹2107221

LM-1100 This luminaire is used to create various light pictures at concert shows and discos with the possibility to change color, diffusion angle and beam position in space.

Using in the luminaire Ñolor Mixing Principle (CMY) allows to receive big amount of color hues. In the luminaire beam position, its color, diffusion angle (frost-effect), intensity and motion speed are remotely programmed.

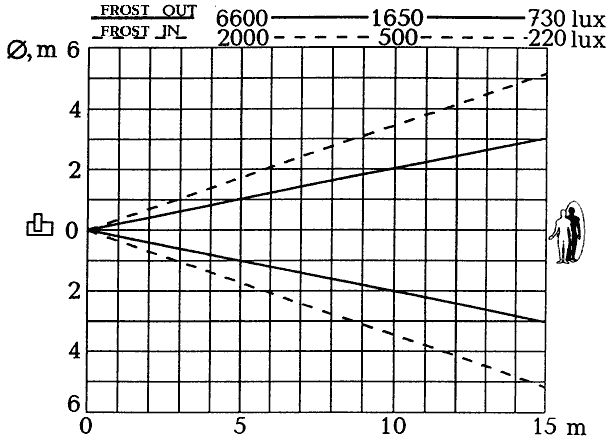

ILLUMINATION DIAGRAM



SPECIFICATIONS
Power, V 220(+5%;-10%)
Frequency , Hz50/60
Power consumption, W1200
Types of lamps, B/W
  • KGM 220x1100
  • CP70 230x1000
Ventilationautomatic, forced
Temperature protectionautomatic
Number of colorsmixing (CMY)
Electronic dimming0-100%
Beam deviation, degree
  • axis X 240°
  • axis Y 345°
Movement angle speed , degree/sec100
Control protocol DMX-512, 1990

Control channels:
  1. Axis X (PAN);
  2. Axis Y (TILT);
  3. Color (C) - cyan (cyan);
  4. Color (M) - magenta (magenta);
  5. Color (Y) - yellow (yellow);
  6. Dimmer (DIMMER );
  7. Diffusion angle (DIFFUSION);
  8. Speed X and Y;
  9. Color changing speed.
Dimensions, mm 430x360x345
Weight, kg12

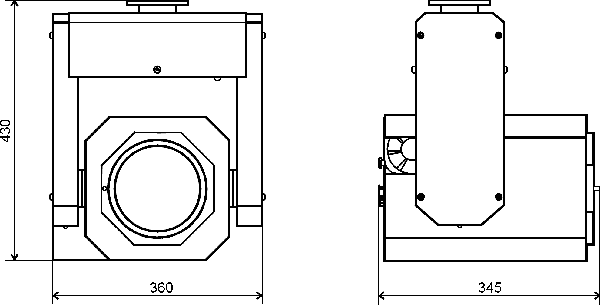

OVERALL DIMENSIONS
Dimensions
